Infrared Underwater Fish Finder

The Infrared Underwater Fish Finder is a powerful and professional-grade system designed to help anglers visualize what’s happening beneath the water. With a high-resolution camera, bright LED illumination, and an extended battery life, this fish finder helps you monitor fish activity, underwater terrain, and real-time movements with accuracy and detail.

Whether you fish in lakes, rivers, or coastal waters, this system delivers the clarity and control needed to improve your success rate.

Features of the Infrared Underwater Fish Finder

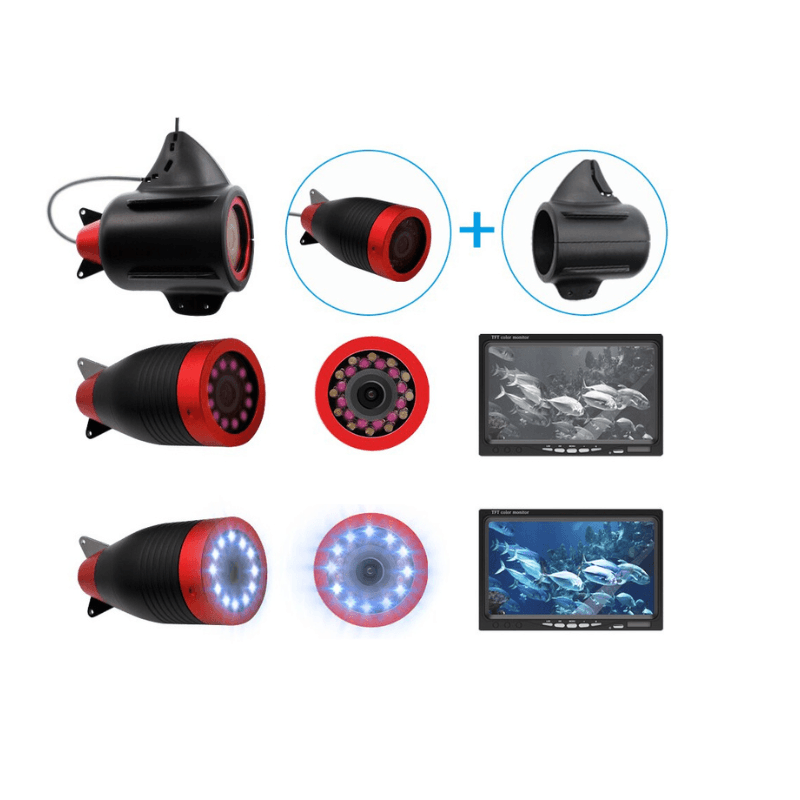

This IR Fishing Camera System features a 1000TVL color CMOS camera that delivers sharp underwater imaging in both bright and low-light conditions. Equipped with 12 infrared LEDs and 12 white LEDs, it adapts to changing water visibility, giving you uninterrupted sight below the surface.

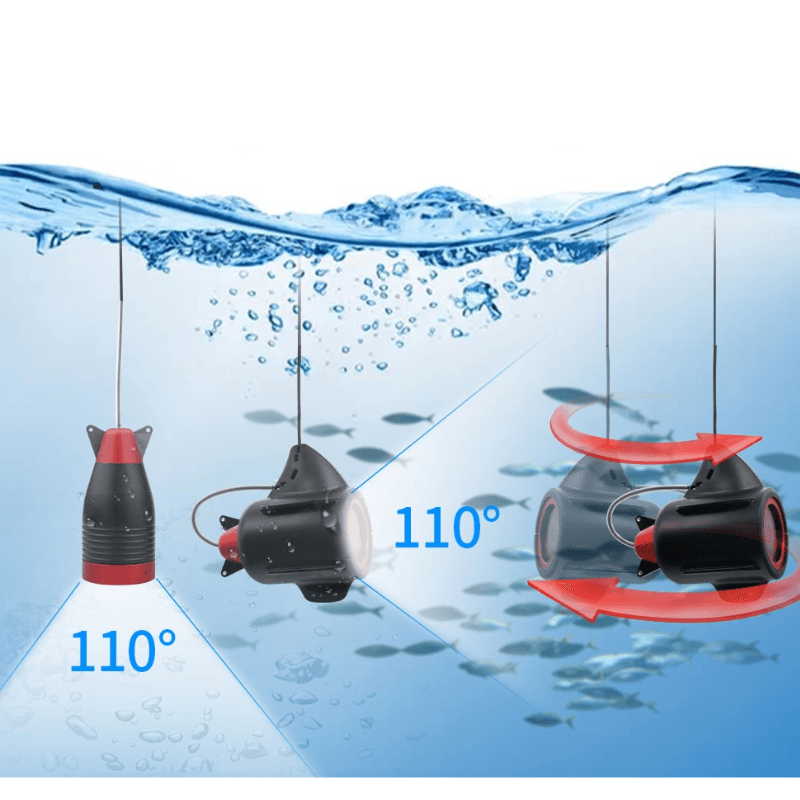

The Cable Sonar Fish Finder uses a 200kHz wired sonar frequency and has a wide 110° coverage angle, which makes it ideal for scanning larger underwater areas. Whether you're looking for fish clusters, studying bottom structure, or observing lure behavior, this sonar gets the job done.

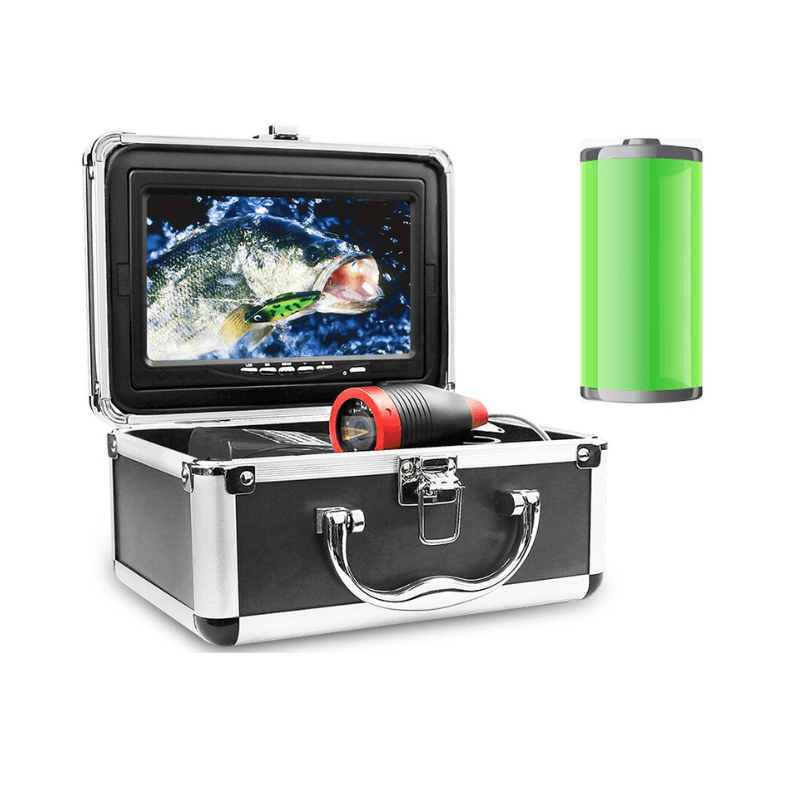

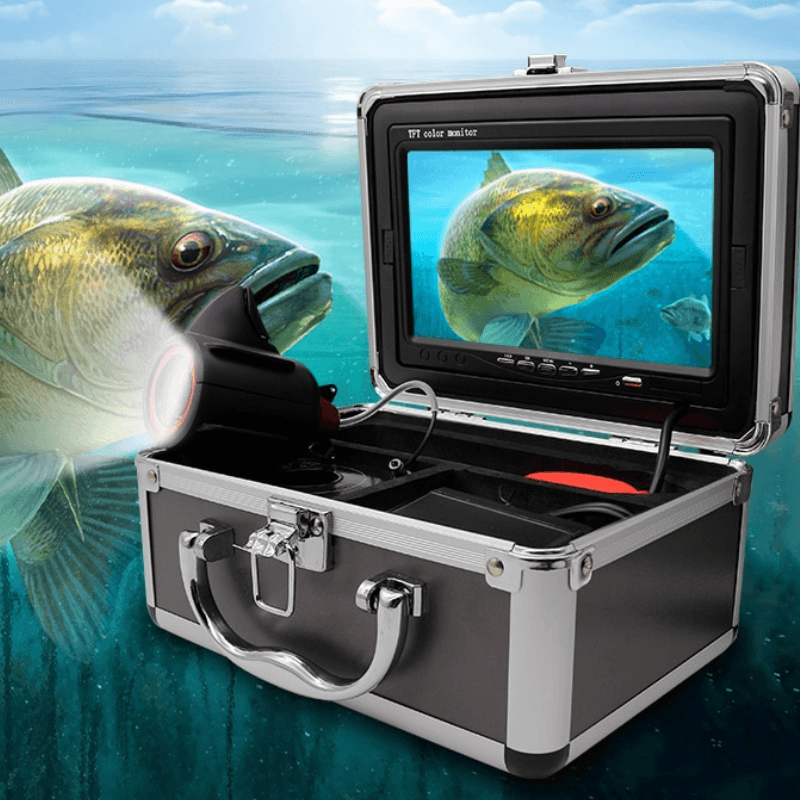

Built into a rugged case, the system includes a high-quality Underwater Fishing Display Kit with a bright LCD monitor for real-time viewing. The display does not record video but offers real-time feedback with color imaging and strong contrast.

Why Choose This Wired Depth Detection Camera

This Wired Depth Detection Camera is tailored for anglers who want reliable sonar results without relying on wireless signals. The camera connects directly through a durable cable, ensuring stable and uninterrupted data transfer.

The built-in 4500mAh lithium battery provides up to 10 hours of continuous runtime. Whether you're fishing for a few hours or spending the whole day on the water, this Long Battery Sonar Device won’t let you down.

The wide sonar beam angle, combined with the advanced 1000TVL Underwater Camera, provides excellent coverage and crisp underwater visuals. You can spot fish, observe reactions, and analyze terrain in real-time.

Perfect For a Range of Anglers

This Infrared LED Fish Cam is perfect for:

• Boat-based or pier fishing

• Ice fishing in clear or low-light waters

• Monitoring underwater bait and structure

• Deep-water observation (up to 30 meters)

• Day or night fishing with dual light modes

• Anglers needing stable, cable-based sonar systems

Whether you’re a hobbyist or professional, this Color CMOS Fish Viewer offers unmatched detail, precision, and dependability.

Specifications

• Camera Type: CMOS 1000TVL

• Image: Color display (no video recording)

• Sonar Type: Cable-based, 200kHz

• Sonar Coverage: 110° angle

• LED Lights: 12 Infrared + 12 White LEDs

• Depth Options: 15m or 30m cable

• Viewing Distance: 0–5 meters

• Resolution: 1000TVL

• Power Source: 12V 4500mAh lithium battery

• Battery Runtime: Up to 10 hours

• Charger Input: AC 100–240V / DC 12.6V

• Operating Temp: -20°C to 60°C

• Languages Supported: English, Russian, Japanese, Chinese (10 total)

• Pressure Resistance: Up to 0.5 MPa

• System Voltage: DC 10–18V

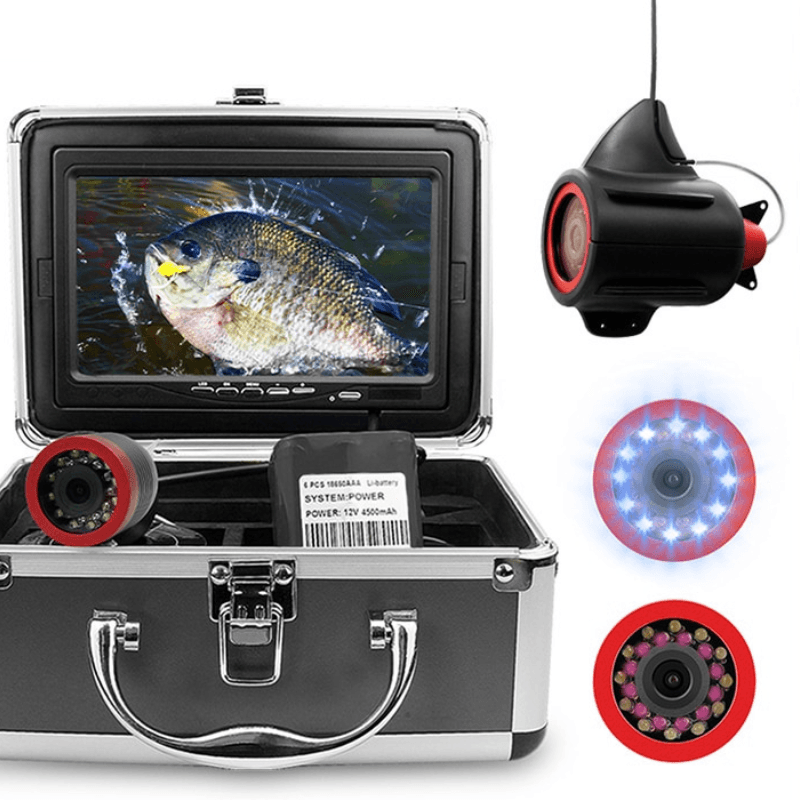

What’s Included

• 1 x Infrared Underwater Fish Finder

• 1 x High-definition LCD Monitor

• 1 x 15m or 30m Cable Sonar Camera

• 1 x Lithium Battery (4500mAh)

• 1 x Charger

• 1 x Durable Carrying Case

• 1 x Multilingual Instruction Manual

• 1 x PVA Mesh Accessory

Care and Instructions

To get the best out of your IR Fishing Camera System:

• Fully charge the battery before each use

• Avoid submerging the screen or control panel

• Clean camera and lens after every fishing trip

• Do not expose the unit to high impact or heat

• Use the carrying case for safe storage and transport

• Switch light modes as needed based on water clarity

These tips will help ensure long-term performance and image clarity.

Conclusion

The Infrared Underwater Fish Finder offers high-definition visibility, extended power, and wide sonar coverage in a rugged, easy-to-use package. Whether you're exploring murky lakes, ice fishing, or seeking better underwater insight, this system helps you fish smarter with every drop.

With a powerful Infrared LED Fish Cam, bright display, and reliable wired connection, it’s a must-have for serious anglers looking for clarity and accuracy.
